Introducing the new model, Dune HD Smart H1.
The private messaging box get full easily.
Please direct your inquiries to my company email address : hdstudio2u@gmail.com
Thank You.

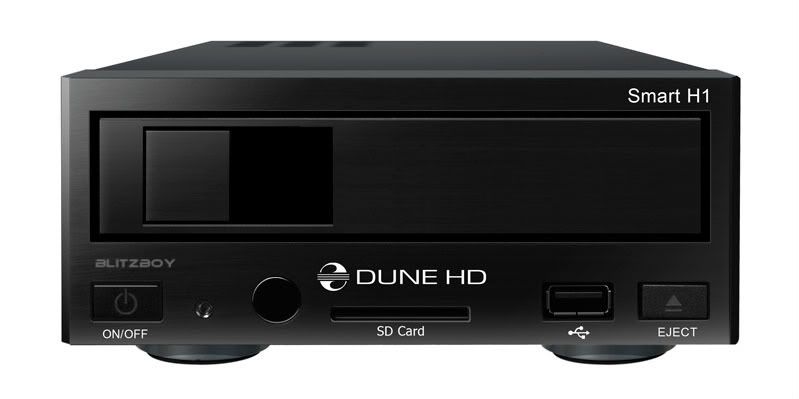

Item(s): Dune HD Smart H1 is an all-in-one solution for up to Full HD (1080p) video playback.
Key Features
The newest Sigma Designs 8642/8643 media processor: enjoy excellent playback and performance of interactive features.
HDD player: connect an HDD to the player and play content directly from the HDD.
Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).
MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate.
RealD: watch 3D video in this ultra modern format used in cinema for the latest movies.
HD audio: enjoy top-quality audio tracks (Dolby True HD, DTS HD Master Audio, LPCM, FLAC).
3 USB ports: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.
eSATA port: connect an HDD via the most efficient eSATA interface.
HDD rack with hot swap function: easily and quickly insert and exchange internal 3.5" SATA HDD.
USB slave port: easily and quickly transfer files between the HDD in the player and a PC.
SD card slot: easily play media files on SD memory cards from your camera or other devices, or use an SD memory card as a local or system storage (required for BD Live function).
HDMI 1.3: ensure the best possible quality of HD video and HD audio.
A rich set of standard A/V connectors: use S/PDIF optical audio, stereo audio, component video, composite video outputs to easily connect any A/V equipment.
Flexible support for Dolby True HD and DTS HD Master Audio: output as bitstream or decode to LPCM for flexibility when connecting audio equipment.
Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.
File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).
Specifications
Processor: Sigma Designs 8642/8643
RAM: 512 MB
Flash memory: 128 MB, expandable with a HDD partition, USB flash drive, or SD card (2GB recommended)
Media sources: internal HDD (SATA 3.5”), external HDD (USB, eSATA), external optical drive (USB, eSATA), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local network media sources (HTTP, multicast UDP/RTP)
Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264; support for very high bitrate video (up to 50 MBit/s and higher)
Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, Blu-ray-ISO, BDMV, DVD-ISO, VIDEO_TS
Optical disc formats: data discs (CD/DVD/BD) (MP3, JPEG, etc), Audio CD (PCM/DTS), DVD-Video (retail and user-authored discs), Blu-ray (retail and user-authored discs) *
Blu-ray playback: Blu-ray menu, BD-J, BonusView, BD-Live – for both Blu-ray discs (retail and user-authored) (*) and full Blu-ray structures (Blu-ray-ISO, BDMV) played from HDD and network
Video output modes: wide range of supported output resolutions (up to 1080p) and framerates (including 23.976p, 24p, PAL, NTSC)
Video output framerate: automatic (according to the played content) and manual
Audio codecs: AC3 (Dolby Digital), DTS, MPEG, AAC, LPCM, WMA, WMAPro, EAC3 (Dolby Digital Plus), Dolby True HD, DTS HD High Resolution Audio, DTS HD Master Audio, FLAC, multichannel FLAC, Ogg/Vorbis; support for very high quality audio (up to 192 kHz / 24-bit)
Audio file formats: MP3, MPA, M4A, WMA, FLAC, APE (Monkey’s Audio), Ogg/Vorbis, WAV, DTS-WAV, DTS, AC3, AAC
HD audio support: pass-through (up to 7.1 channels) and decoding (stereo downmix) of Dolby TrueHD and DTS HD MA audiotracks (Blu-ray, TS, MKV), pass-through (up to 7.1 channels) of multichannel LPCM audiotracks (Blu-ray, TS, MKV), decoding (up to 7.1 channels) of FLAC audiotracks (MKV, external)
Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (Blu-ray, TS, MKV)
Picture file formats: JPEG, PNG, BMP, GIF
Playlist file formats: M3U, PLS
Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle
Audio playback functions: browse playlist, repeat, shuffle, ID3 tags, plasma TV burn-in prevention
Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3 (read-write), NTFS (read-write)
Ethernet: 10/100 Mbit
WiFi: optional 802.11n WiFi (via an external USB WiFi stick, not included, D-Link DWA-140 recommended)
Dune Network Playback Accelerator: special optimizations ensuring best-in-class network playback performance for the Sigma Designs 864x platform and enabling smooth playback of any supported kind of media content via any network protocol (including NFS and SMB) even in 100 Mbit/s Ethernet networks.
Extra Functions
High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey's Audio APE, WAV/PCM, DTS, etc).
Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.
NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).
BitTorrent: use built-in BitTorrent client to download files from P2P networks.
Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).
Flash applications: extend the player functionality with FlashLite applications.
Internet radio: playback and record various Internet radio stations (HTTP/MP3).
IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider (check availability of multicast UDP/RTP streams with your Internet provider).
Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle (Digital TV USB dongle is not included; this option can be purchased separately).
Internet browsing: view Internet Web sites on your TV using the built-in Web browser (built-in Web browser has limitations and may not allow to view some Internet Web sites).
Modular System of Player Configuration
Dune HD Smart players allow to create custom configurations based on the primary (head) unit like Dune HD Smart B1/H1/D1 and several optional extension modules of choice, which can be combined to form an integrated player.
The Dune HD Smart player itself is a head unit which can be extended at user's desire with extension modules, such as the following:
•Dune HD Smart HE (adds the option for easy installation of SATA 3.5" HDD with hot swap feature).
•Dune HD Smart ME (adds the option for installing different additional modules, in particular, for reception of satellite, cable or digital terrestrial TV).
•Dune HD Smart BE (adds the option for Blu-ray/DVD/CD playback) (including commercial Blu-ray/DVD discs).
Extension modules can work exclusively with the head unit (Dune HD Smart player) and use a common control system, implemented via the head unit. The number of connected modules may vary in a wide range: the user can compile his/her own Dune HD Smart system of e.g. two, three and even six components.
In order to group SMART devices by 2 or 3 horizontally, special mounts can be used. For example, a group of 3 modules, including the head unit, combined this way, will comprise a new player of a standard size like the model Dune HD Max.
Besides, grouping the required number of modules allows to supersede the functionality of Dune HD Max, providing more flexibility at the same time. In particular, the modular approach provides the possibility to group modules in any order at any time depending on user's demands, as well as replacing (upgrading) particular modules instead of replacing the entire set of equipment.
Package includes:
Player Set Only
Dune HD Smart H1 media player
Remote control
Power supply cord
AV cable
HDMI cable
Quick start guide
Price:Call for best price.
Warranty: 12 months coverage for player set and hard-drive only(local warranty from authorised supplier)
Dealing method:
Come visit our showroom or check out our page in Facebook. Click here.
Location of seller:
Our contact :
Paradise HD Studio, owned by Paradise HD Zone (001963405-W)
Location: 12A-1 Jalan PJS 8/17, 46150 Petaling Jaya, Selangor | Mobile : 010 2066609 (Danny) |
email : hdstudio2u@gmail.com Business Hours : Mon - Sun 12:00 pm -10:30 pm
http://www.facebook.com/ParadiseHDstudio
The private messaging box get full easily.
Please direct your inquiries to my company email address : hdstudio2u@gmail.com
Thank You.
The private messaging box get full easily.
Please direct your inquiries to my company email address : hdstudio2u@gmail.com
Thank You.
Age of item: New
Item(s) conditions: New
Picture:
Reason for sale: Business
